Product Specifications
-
Product Details
Product Specifications
Features

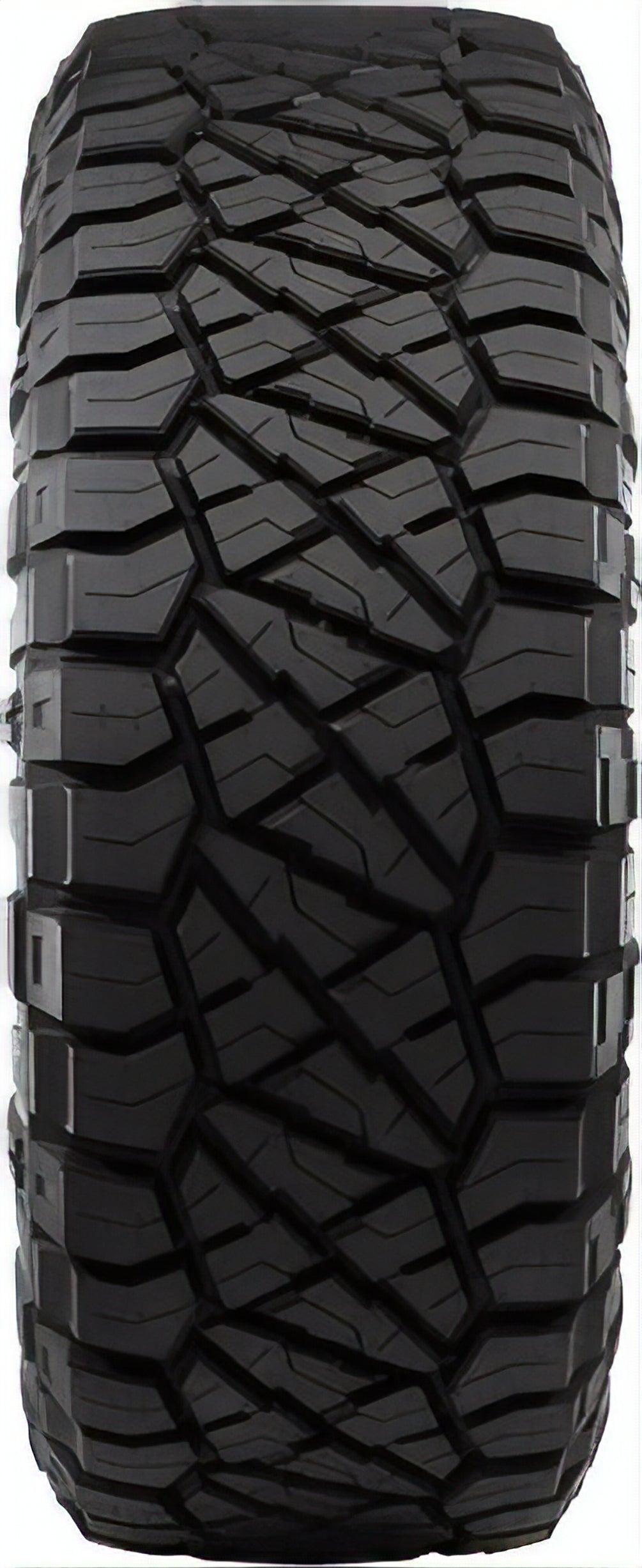

- variable pitch tread pattern - Advanced sound equipment was used to create A pattern that provides A quiet and Smooth highway ride.
- shoulder & Lateral Z grooves - shoulder grooves are arranged in Alternating widths and lengths to clear mud and Maintain traction. Lateral Z grooves are set in A Zig-zag pattern to provide biting Edges for traction.

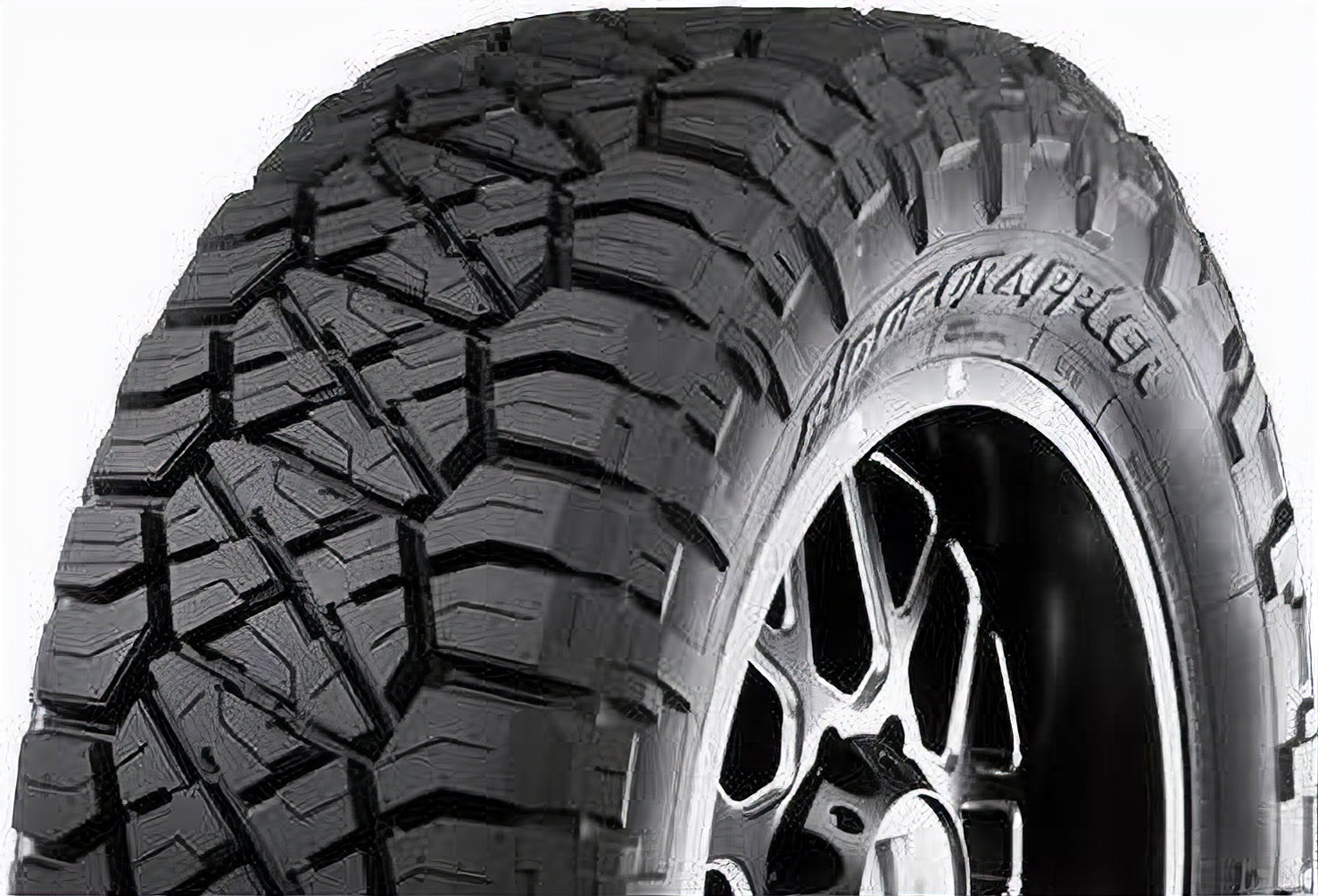

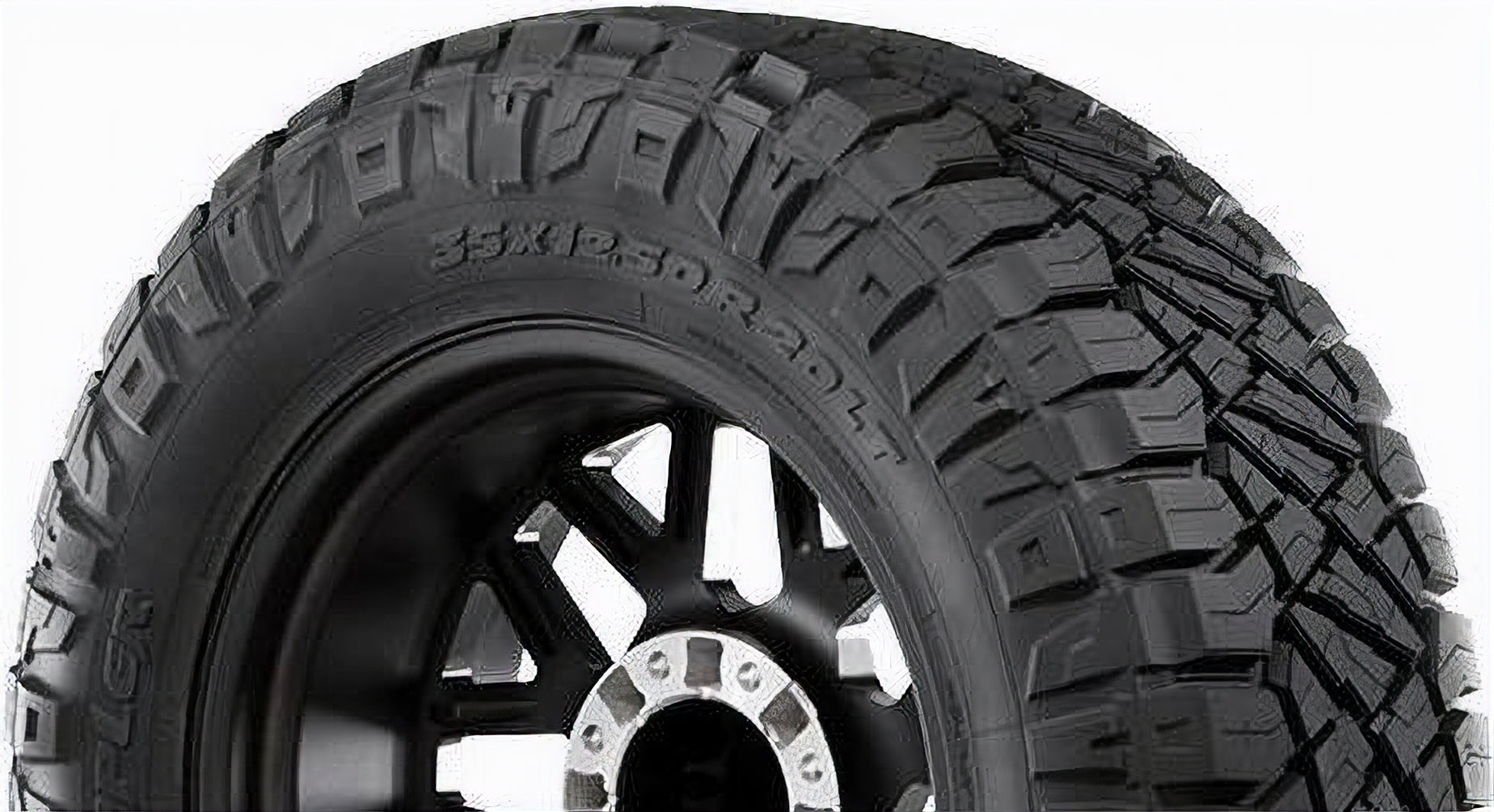

- Dual sidewall - like All Grapplers, The Ridge Grappler features Two Bold sidewall designs. one side features A more traditional pattern while The other side features A New, Aggressive block design.
- reinforced block foundation - adds rigidity to tread blocks to reduce flex.
- stone ejectors - Protects The bottom of groove from stone drilling.
- Staggered shoulder Lugs - provides traction in off-road environments.
- Edges - The Alternating Tapered Edges and step block Edges both provide Additional biting Edges for more traction.
Model

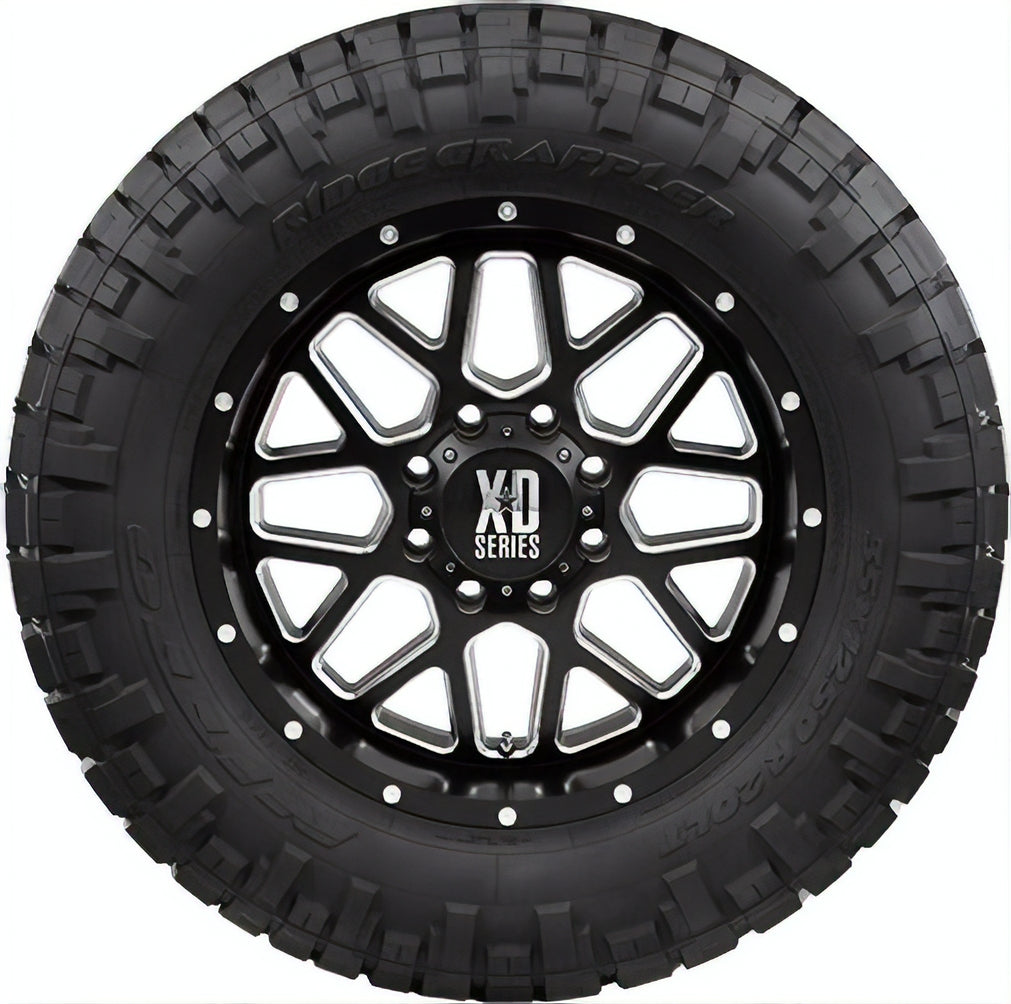

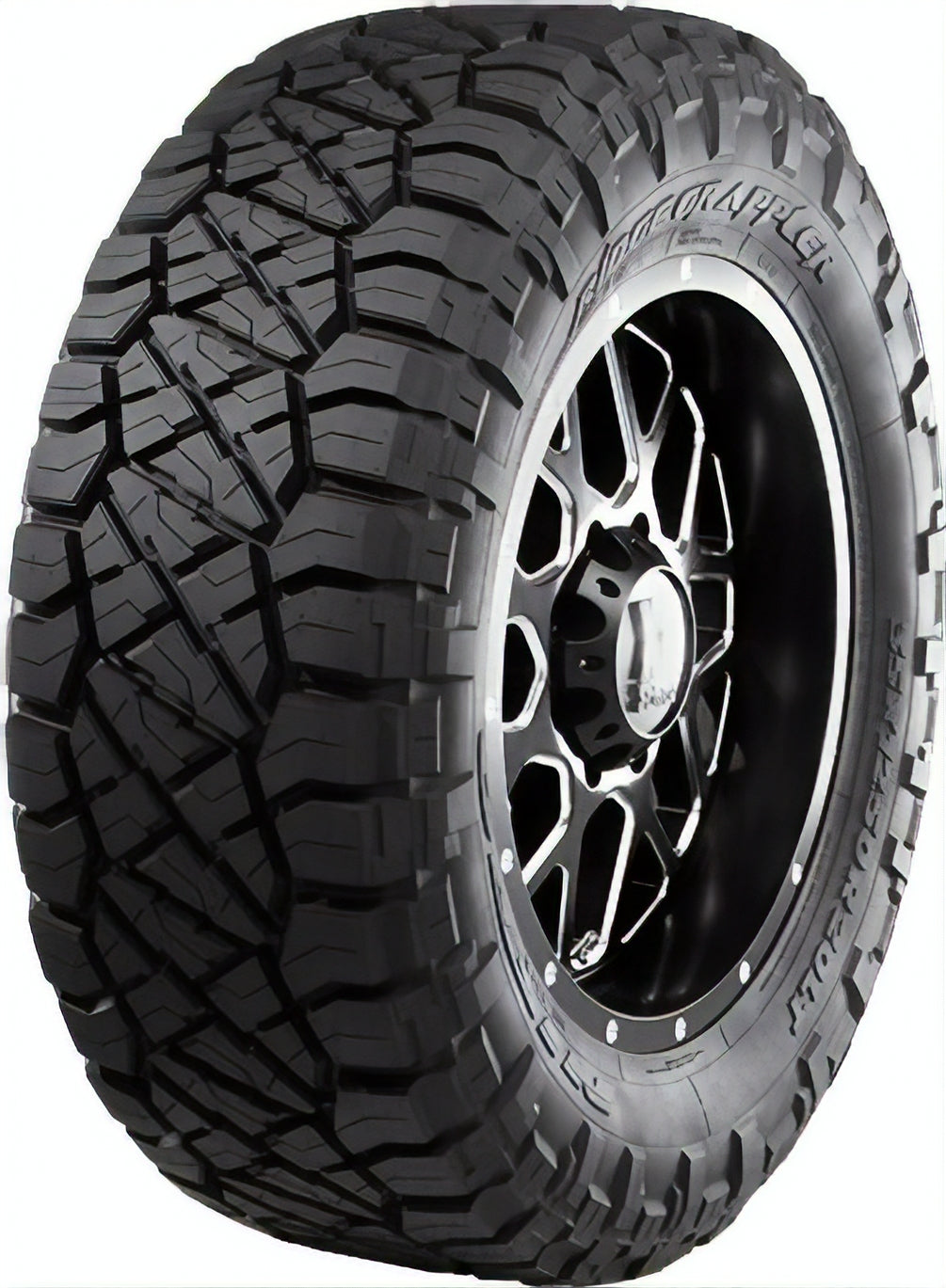

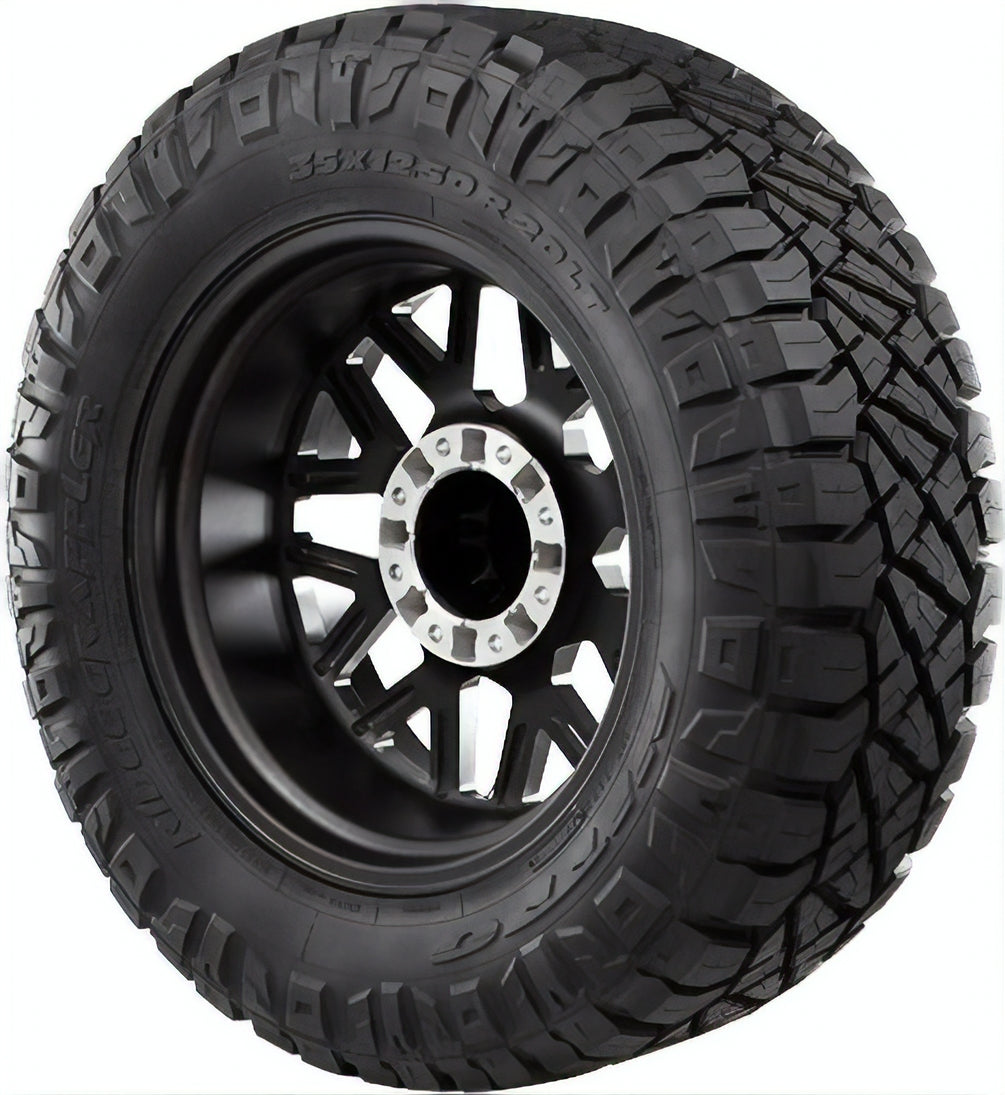

Ridge Grappler
Warranty
Weight
71.0 lb
Size
35X12.5R20
Technical Specifications
Tread Type
AT
Tread Depth
18.3
Tire Speed
Q
Tire Load
125
Raw Size
35X12.5R20
Sections
35.0
Rim Width Max
12.0
Rim Width Min
9.0
Ply
F
Ply Rating
12
Overall Diameter
34.76
Max Load
3640
Max Inflation
80.0
